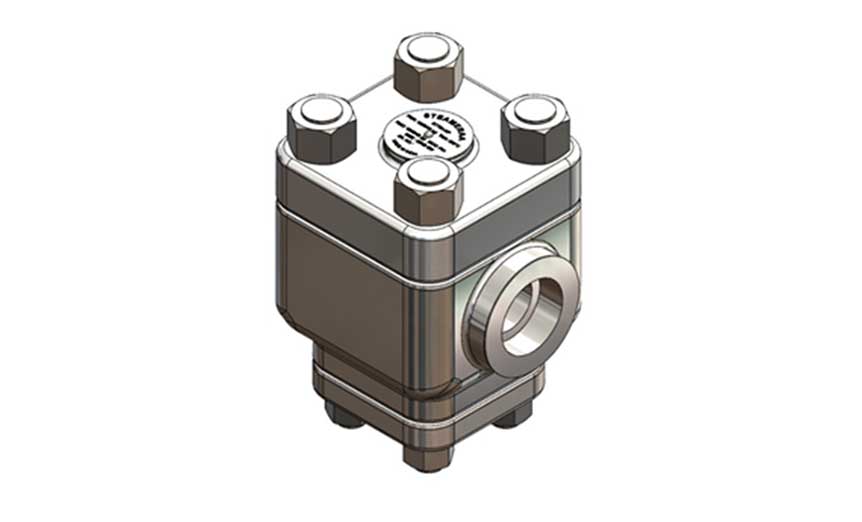

The STT54 Thermodynamic Steam Trap is designed for the automatic removal of condensate and air from steam systems while minimising the loss of live steam. It operates on the thermodynamic effect created by changes in pressure and velocity as condensate and flash steam pass through the trap. The compact, robust construction incorporates a replaceable seat and disc to facilitate maintenance and component replacement. Manufactured with an ASTM A182 Gr. F91 body Alloy Steel construction for High pressure & Temperature conditions.
| Parameter | Specification |
|---|---|
| Product Name | Thermodynamic Steam Trap |
| Model | STT54 |
| Nominal Sizes | 15NB, 20NB & 25NB |
| Body Material | ASTM A182 Gr. F91 |
| Operating Principle | Thermodynamic Disc Mechanism |
| Construction | Compact, Robust |
| End Connections | Socket-weld & Butt weld |
| Seat Construction | Replaceable Seat & Disc |
| Internal Disc & Seat Materials | Hardened ASTM A681 D2 |
| Strainer Screen | AISI 304 |
| Insulation Cover | All-weather Insulation Cover |
Thermodynamic Disc Operation:
Uses pressure and velocity changes associated with steam
and condensate flow to control discharge and reduce
live-steam loss during normal operation.
Replaceable Seat & Disc:
Allows servicing of key internal components without
replacing the complete trap, subject to the approved
maintenance procedure.
Compact Construction:
Supports installation in space-constrained steam
distribution and condensate drainage arrangements.
Robust F91 Body:
ASTM A182 Grade F91 body material provides a basis
for high-pressure-temperature steam service.
All-Weather Insulation Cover:
An insulation cover can help reduce heat loss and limit
the effects of external weather exposure; its material,
thermal performance and environmental rating require
confirmation.
| Parameter | Specification |
|---|---|
| PMA (Maximum Allowable Pressure) | 250 bar(g) |
| TMA (Maximum Allowable Temperature) | 550°C |
| PMO (Maximum Operating Pressure) | 120 bar(g) |
| Minimum Differential Pressure for Reliable Operation | 8 bar |
| Cold Hydro Test Pressure | 375 bar(g) @ RT |
| Outlet Back Pressure | Must remain below 50% of the inlet pressure. |
The STT53 Thermodynamic Steam Trap is intended for consideration in the following industrial steam applications.
High-Pressure Boiler Steam Lines:
High-pressure boiler steam lines and associated
condensate drainage points.
Power Generation Plants:
Power generation plants and thermal power station
steam systems.
Refinery & Petrochemical Industries:
Refinery and petrochemical process steam networks.
High-Temperature Process Steam:
High-temperature industrial process steam lines.
