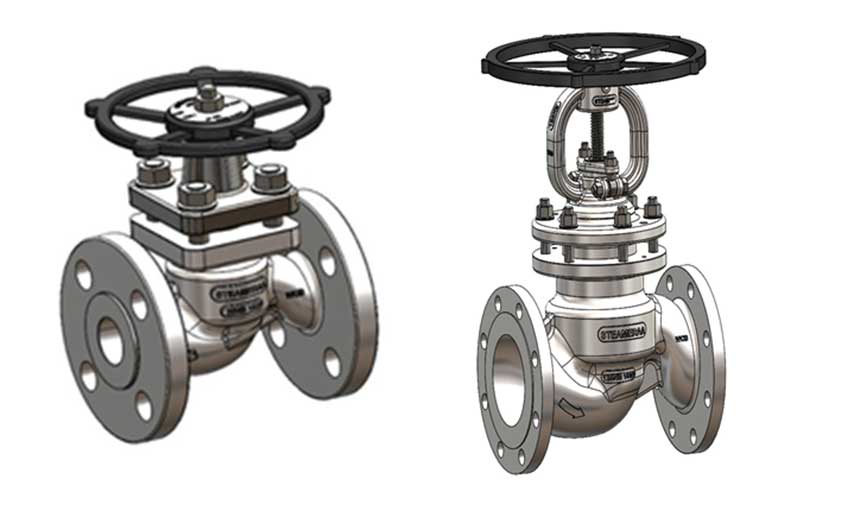

The SPV21 Piston Valve is an industrial valve designed for controlling & isolating fluid flow in piping systems. Its piston-type operating mechanism moves within the valve assembly to regulate or stop the passage of the process medium. The valve is specified with a robust ASTM A216 Gr. WCB cast carbon steel body & flanged end connections suitable for the designated Class 150 & Class 300 configurations. Its compact construction is intended to support installation in industrial process, utility & steam service applications.
| Parameter | Specification |
|---|---|
| Product Name | Piston Valve |
| Model | SPV21 |
| Nominal Sizes | 15NB, 20NB, 25NB, 40NB, 50NB, 65NB, 80NB, 100NB, 125NB, 150NB & 200NB |
| Body Material | ASTM A216 Gr. WCB |
| Operating Principle | Axial Piston Movement Against Sealing Rings |
| Construction | Compact, Robust |
| Nominal Pressure Designation | Class 150 & Class 300 |
| End Connections | Flanged - ASME Class 150 & Class 300 |
| Internal Piston & Spindle Materials | AISI 304 |
| Seal Rings | Graphite with SS 304 |
Gland-Free Sealing Arrangement:
Eliminates the conventional stem packing gland,
reducing the need for routine packing adjustments.
The piston-and-ring arrangement is designed to provide
reliable shut-off performance.
Cost-Effective Maintenance:
A serviceable sealing assembly can help simplify
routine inspection and component replacement.
Reduced Sealing Surface Wear:
The piston-and-ring design helps minimize direct
sliding contact with the body sealing surface,
depending on the design and operating conditions.
Efficient Flow Isolation:
The piston mechanism provides a defined shut-off
arrangement for isolating compatible process fluids.
Thermal Expansion Accommodation:
The sealing arrangement can accommodate thermal
movement when designed with suitable clearances
and resilient components.
Controlled Leakage Performance:
The piston and seal ring arrangement is designed
to restrict leakage through the closed valve
and around the stem.
| Parameter | Class 150 | Class 300 |
|---|---|---|
| PMA (Maximum Allowable Pressure) | 19.6 bar(g) @ 38°C | 51.1 bar(g) @ 38°C |
| TMA (Maximum Allowable Temperature) | 425°C @ 5.5 bar(g) | 425°C @ 28.8 bar(g) |
| Cold Hydro Test Pressure | 29.4 bar(g) @ RT | 76.7 bar(g) @ RT |
Steam & Condensate Systems:
Isolation of steam distribution lines, condensate
piping and associated utility equipment, subject
to approved pressure-temperature limits.
Thermal Fluid Systems:
Isolation in heat-transfer fluid circuits where
the fluid and temperature are compatible with
the valve materials.
Water & Hot-Water Systems:
Industrial water distribution, heating circuits
and utility pipelines.
Compressed Air & Gas Systems:
Isolation of compatible gases within the
approved operating limits.
Process Industries:
Isolation of compatible process fluids in
manufacturing and plant utility systems.
Chemical & Industrial Fluid Services:
Applications subject to verification of chemical
compatibility with the body, piston, sealing rings
and other wetted components.
Power & Utility Plants:
Isolation duties in auxiliary service lines,
subject to application-specific engineering approval.
